Hydraulic Dock Leveler

Classification：Dock Leveler
Release date：2025-06-17

Inquiry

Hotline：17714099617

summary
characteristic
parameter

We Can Provide You With A Large Number of Dock Levelers

Want to source some industrial equipment for your factory? I think we can not only provide you with dock levelers, but also provide you with systematic warehousing and logistics solutions.

Hi, this is Yang, the founder of SEPPES. Let me guide you through a comprehensive look at our dock leveler.

We are the co-founders of SEPPES. SEPPES, as a high quality industrial equipment supplier, has been supplying dock levelers to various industries and fields for 11 years. Click the button below to get in touch with us and we will customize a factory solution for you.

Why Choose SEPPES Dock Leveler?

We are a company that values customers’ satisfaction. We always aim at producing and delivering quality dock levelers that meet all your needs.

With 11 years of experience, SEPPES is well versed in industrial equipment field. Yes, you are dealing with masters. You can trust them to meet your needs and expectations.

Need proof? Why not contact us to let us schedule a zoom inspection session for you. Though physical inspection at the moment is not available because of the COVID-19 pandemic. However, you can come and have a look when the epidemic ends.

√We are certified; SEPPES is CE and SGS approved

√We ensure excellence in the details of dock leveler manufacturing

√We provide professional solutions for your factory

√Each dock leveler has its own “ID card”, which is convenient for us to deal with after-sales in a timely manner

A Good Quality Loading Dock Leveler Can Bring You...

What we sell is not just a dock leveler, but a complete service. It brings convenience to your factory and improves the efficiency of loading and unloading.

Small footprint

When the loading and unloading platform is not working,it is kept in a horizontal position,does not occupy space, and has a certain bearing capacity.

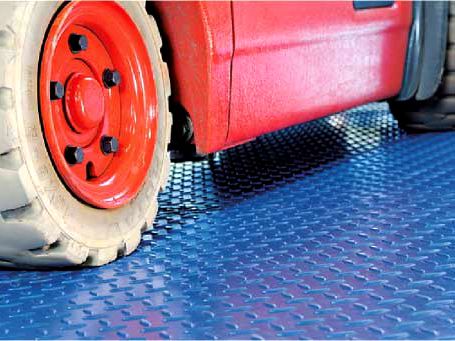

Anti slip

The checker plate is made of international Q235 material, with higher friction coefficient and better anti-skid effect.

Simple operation

As long as the button is pressed, the loading and unloading platform will automatically rise.

load bearing

Customizable loading and unloading platforms with a load of 6-15 tons.

Intelligent control

The intelligent loading and unloading platform control system can realize man-machine dialogue operation and maintenance.

Safety protection

Standard safety solenoid valve to prevent falling. You can also choose a limiter to prevent the car from rolling.

Basic Information About Our Hydraulic Dock Leveler

Only by knowing the basic information of our products, customers can easily determine the size and load of the hydraulic dock leveler that needs to be customized

Customizable style

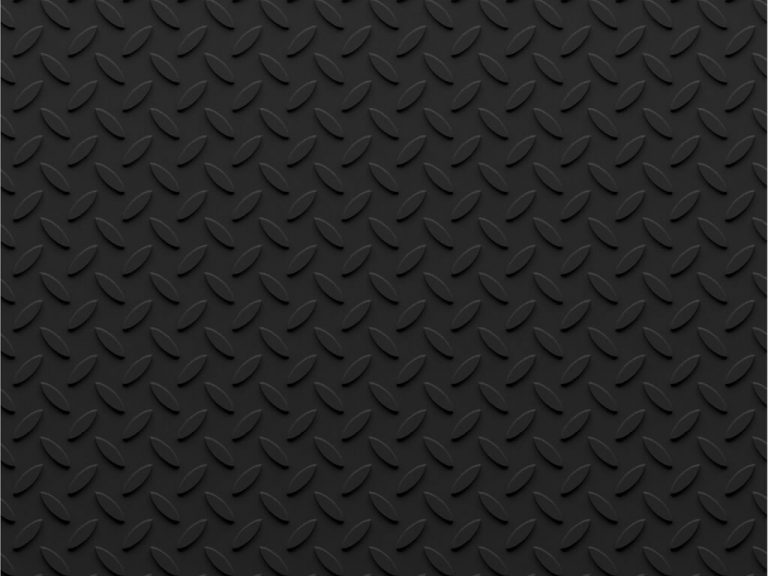

Black pattern panel	RAL9005 black	RAL5005 blue	Blue pattern panel

Basic parameters of the dock leveler

Table Thickness(mm)	8mm thickness patterned steel plate of high quality Bengang
Color ：	Black/Blue /Grey(OPTION)
Length of Tongue Plate(mm)	400(500mm is optional)
Height of Equipment (mm)	600
Scope of Adjustment (mm)	300,-300
Ambient Temperaturer(Celsius)	0-30℃–80℃
Load Description	Dynamic load 6T/8T/10T/15T (customized)
Power Group	Single-phase asynchronous motor 110V,50HZ,1.1KW,1400r/min
ControlBbox	24V electrovalve ,3/8 threads
Protection level:	IP54
Anti-collision Block	300mm200mm100mm rubber pads(OPTION)

How About Our Ability to Manufacture and Supply Dock Levelers?

We have the most professional manufacturing equipment and talents in the field of industrial equipments. Let’s look at the whole process of manufacturing and shipping:

	17,500㎡ Factory Area The supporting professional production factory covers more than 17,500 square meters, which can meet the needs of large orders, fast production and delivery.		Professionals Each of them has more than 7 years of working experience and is equipped with multiple engineering service fleets.
	Automated Equipment We use fully automatic equipment for material conveying and processing, which greatly improves efficiency and quality.		Packing Area The products will be tightly packed and put into wooden boxes to ensure that they will not be damaged during transportation.
	Laser Cutting We refuse to cut curtains and door panels manually, which will cause uneven door surface. Laser cut doors look better.		Safe Transportation After door-to-door packaging, our own special vehicle will be responsible for safely transporting the products to the port for shipment.
